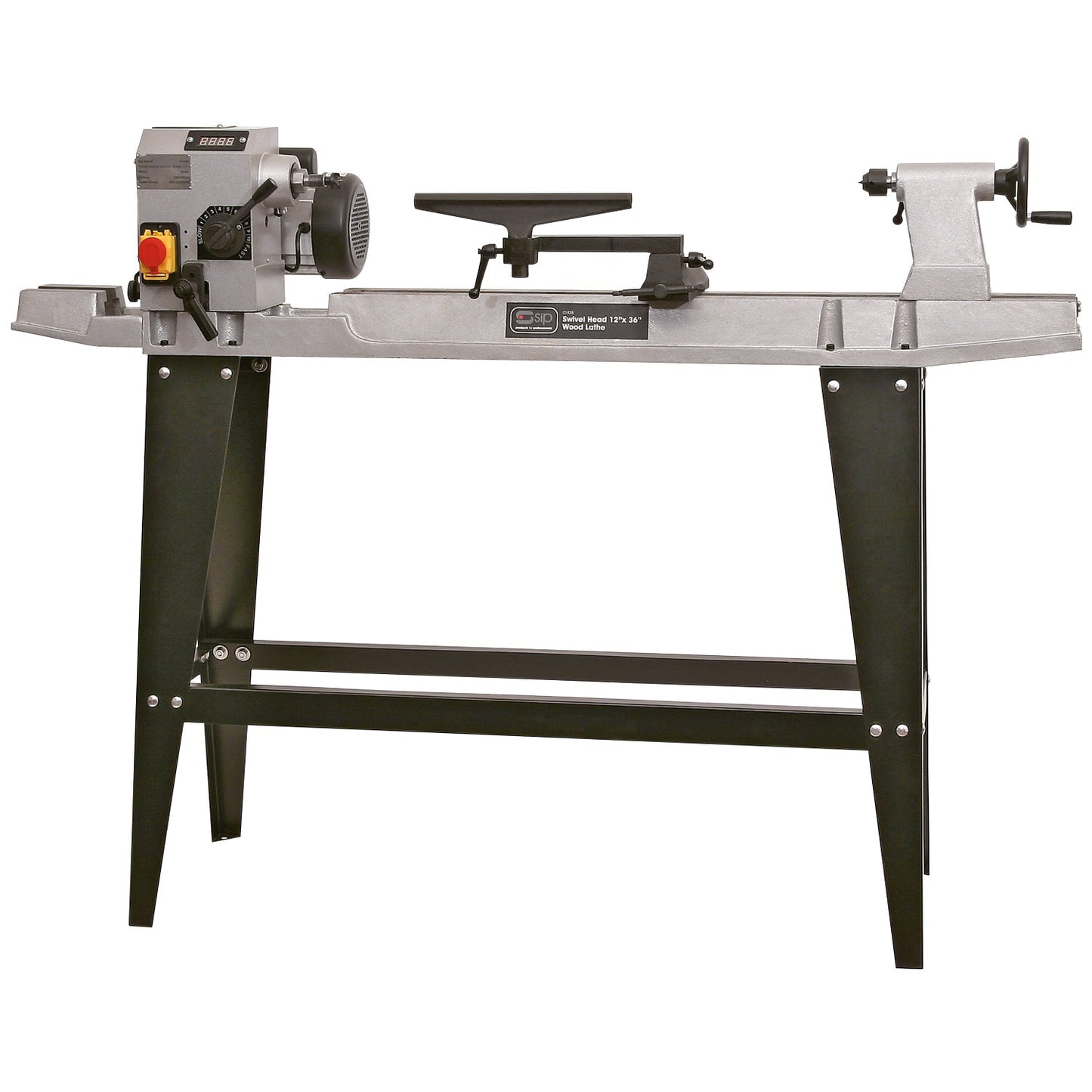

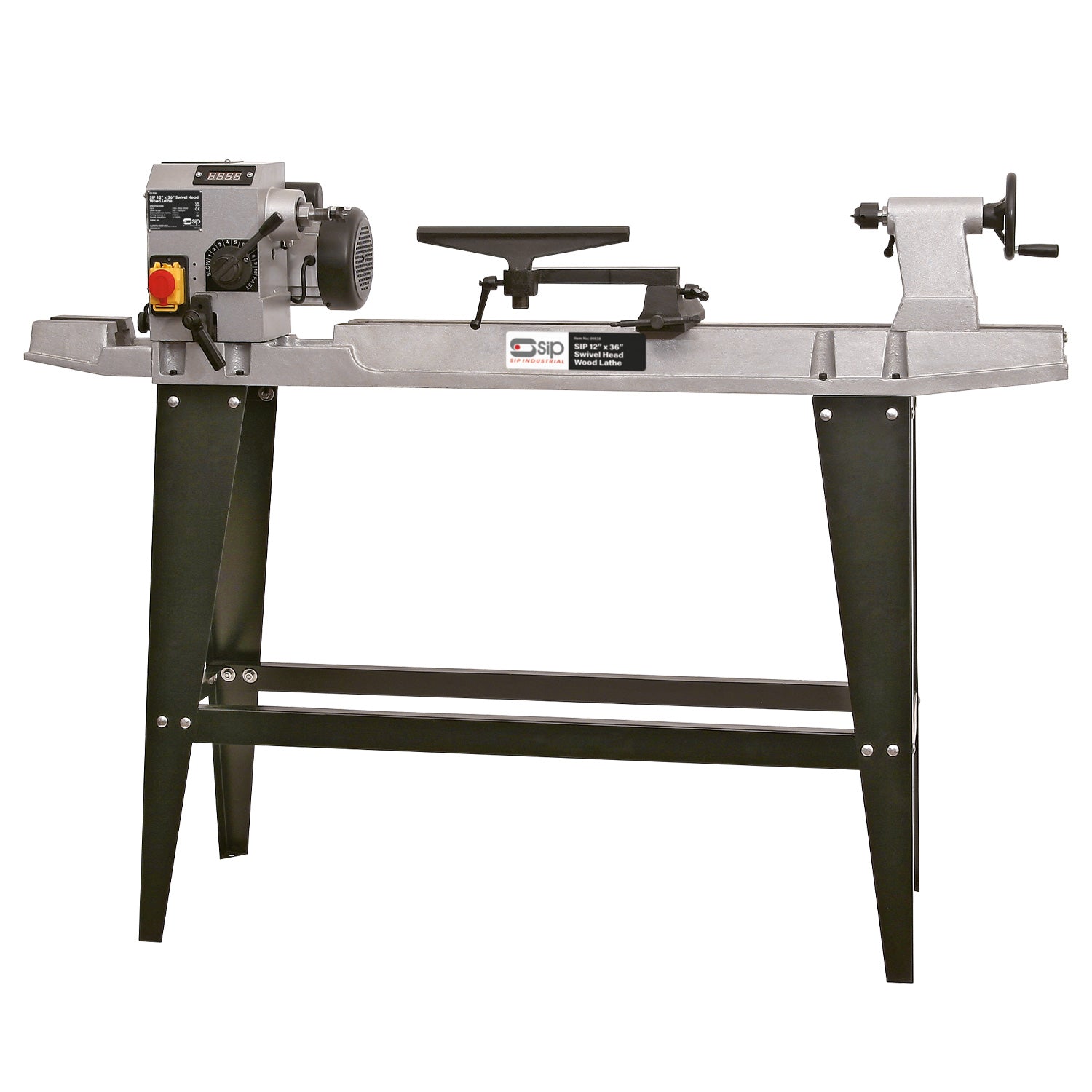

SIP 12" x 36" Swivel Head Wood Lathe

The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.

For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. The lathe bed, headstock and tailstock are manufactured to a professional finish from heavy-duty cast iron. Pressed steel legs with cross braces also help to maintain stability.

The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.

Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.

Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.

• 3/4" x 16TPI spindle thread size: Allows the use of various turning attachments.
• 300mm max. turning diameter (900mm between centres): Enables a variety of woodwork projects and jobs.
• 360° swivel headstock with four lock positions: Allows for outboard turning of larger wood materials.
• Heavy-duty cast iron lathe bed and pressed steel legs: Ensures greater turning stability and accuracy.
• Cast iron MT1 headstock and MT2 tailstock: For an assured hold to the workpiece when turning.
• Digital speedometer display: Provides accurate readout of headstock spindle speed.
• Fitted with hollow tailstock for long hole boring: Offers added versatility for professional applications.
• SIP 2-Year Standard Silver Warranty - ITEM NO. 01938
Input Supply: 230v (13A)
Motor Power: 550w (0.75hp)
Speed Range: 500rpm - 2000rpm
Distance Between Centres: 900mm (36")
Turning Capacity: 310mm (12")
Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
Drive Spur Size: 1 Morse Taper
Tailstock Rotating Centre Size: 2 Morse Taper
Noise Level: 68dB(A)
