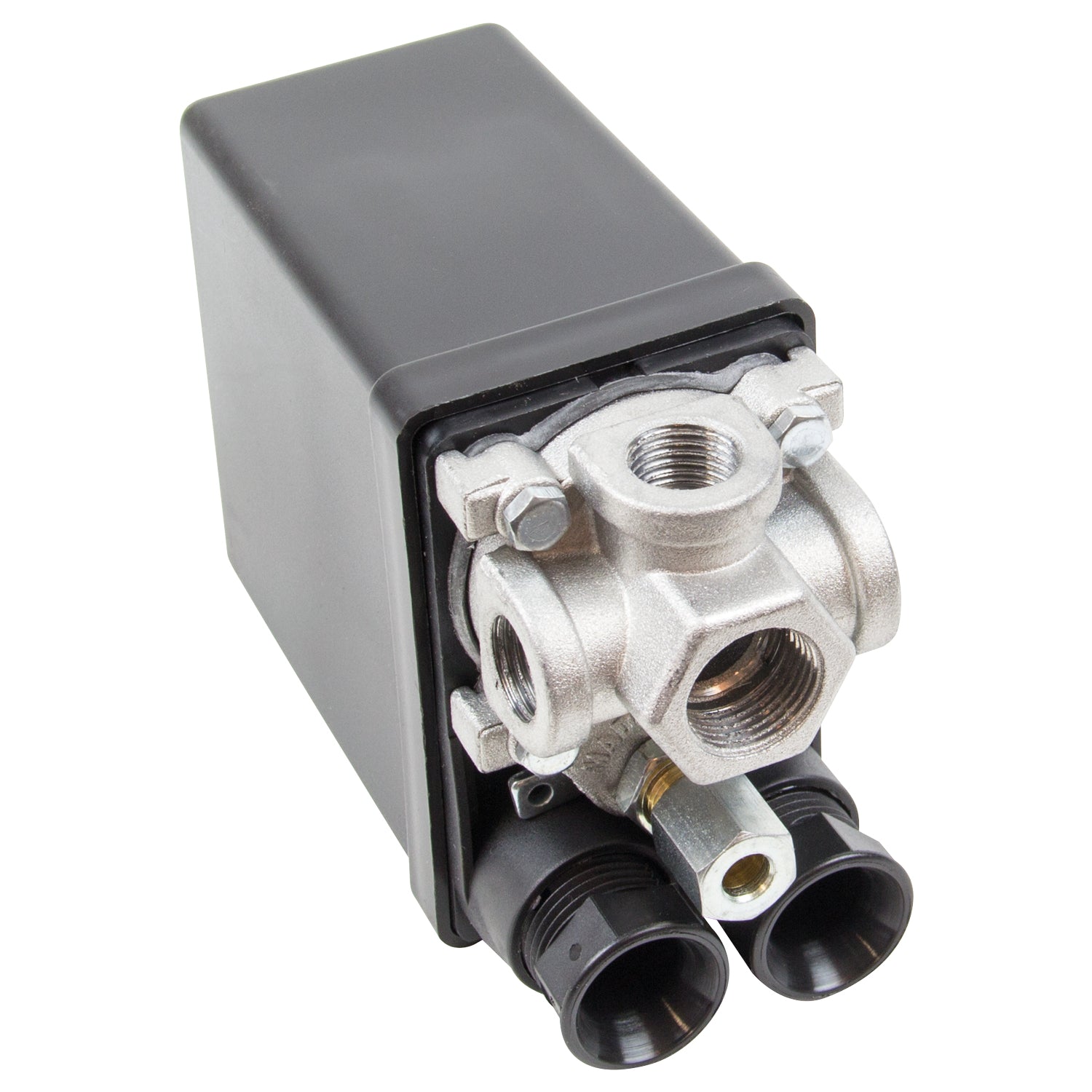

SIP 3/8" 4-Way Pressure Switch

The SIP 3/8" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This easy-to-install switch offers 3x 1/4" BSP port and adjustable cut-off pressure.

• 3/8" 4-way pressure switch with 3x 1/4" BSP ports
• Easily adjustable cut-off pressure via built-in switch
• Designed to start and stop electric compressor motors
• Manufactured for long-lasting and reliable use
• Integrated bleed facility with 6mm pipe entry - ITEM NO. 02316
Switch Type: Mignon 4-Way
Voltage / Current: 230v / 20A
Overload: N/A
Inlet Connection Size: 3/8" BSP
Inlet Connection Type Bottom Entry
Side Port Size: 3x 1/4" BSP
Switch Type: Pull
Phase Type: 1-phase
No. of Poles: 2 poles
