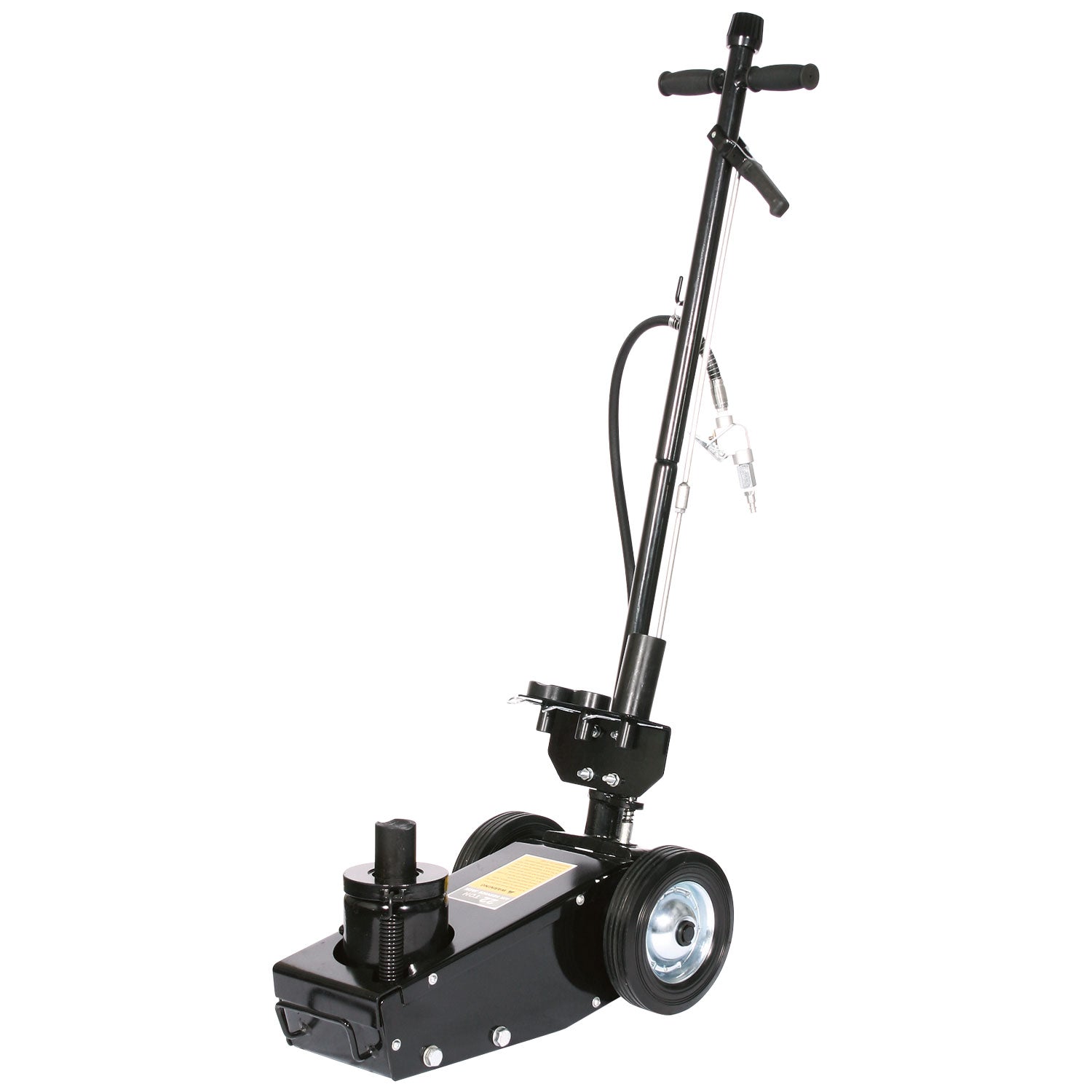

SIP 22 TON Air Floor Jack

The SIP 22 Ton Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery, offering dependable and reliable support across all demanding applications.

This compressed air-controlled jack is ideal for professional garages and workshops.

A low-profile design offer easier access under vehicles, particularly those with lower clearances. In conjunction with the large non-marking rubber wheels, this jack is easy to manoeuvre and positioning regardless of the vehicle type.

For optimal user safety, the 22 TON Air Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manor, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.

• 22 TON maximum weight capacity
• 230mm to 555mm adjustable lifting height
• 115mm screw extension for added versatility
• Manufactured from heavy-duty and durable steel
• Low-profile design for easier under-vehicle access
• Large non-marking rubber wheels for easy movement
• Built-in release knob and integrated handle lock
• Integrated air line hook and air control valve
• 9.5CFM (269ltr/min) maximum air consumption
• 102psi (7bar) to 145psi (10bar) pressure
• SIP 2-Year Standard Silver Warranty - ITEM NO. 03643
Weight Capacity: 22 TON
Min. Lifting Height: 230mm
Max. Lifting Height: 555mm
Ram Stroke: 120mm
Screw Extension: 115mm
Working Pressure: 102psi (7bar) - 145psi (10bar)
Av. Air Consumption: 9.50CFM (269ltr/min)
Adaptor Size: Ø 110mm x 50mm / Ø 50mm x 50mm / Ø 20mm x 50mm / Ø 20mm x 70mm
