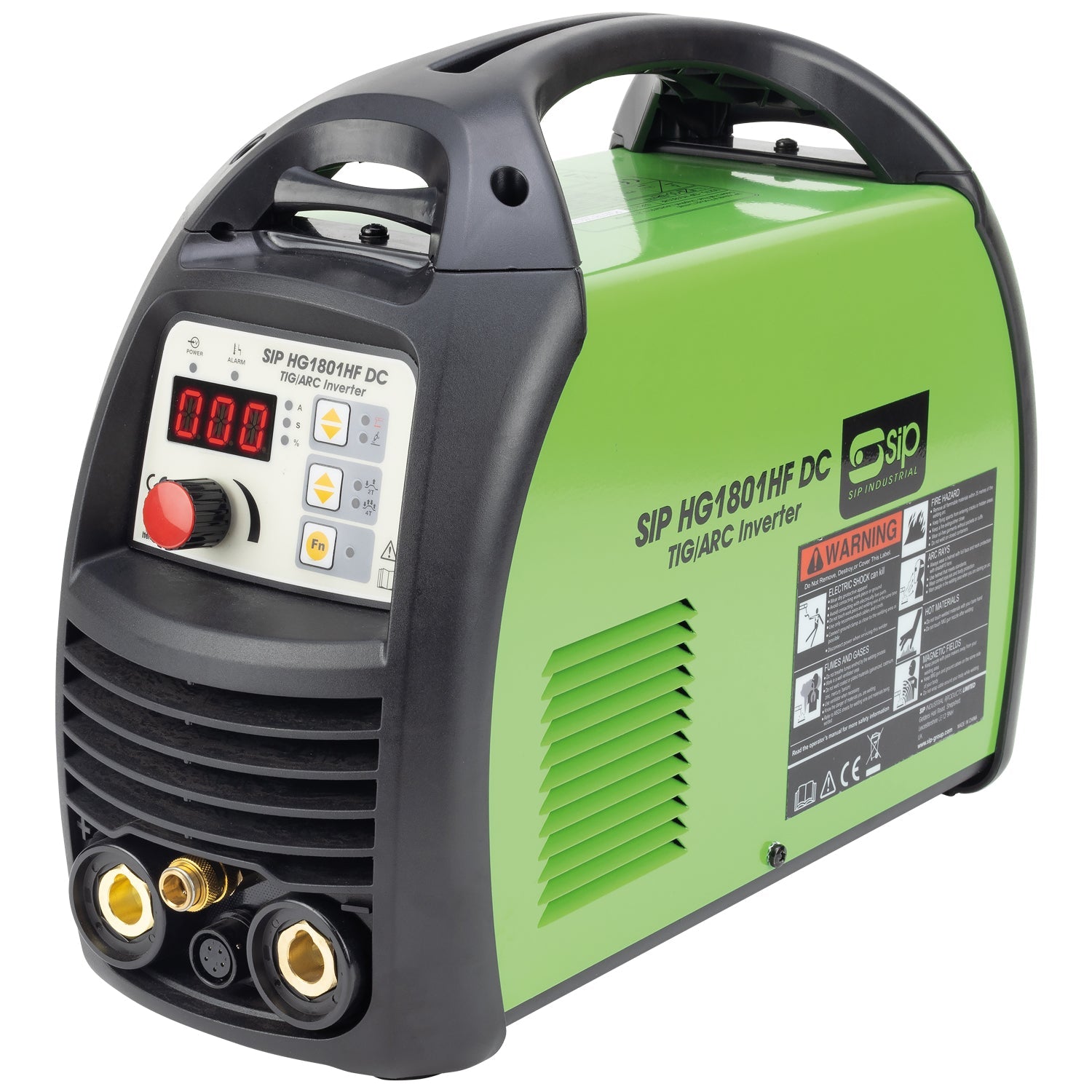

SIP HG1801HF DC TIG/ARC Inverter Welder

The SIP HG1801HF DC TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed to deliver high performance in HF TIG, Lift ARC/TIG and MMA/ARC welding applications utilising the latest IGBT inverter technology.

• Ø 1.6mm to Ø 3.2mm electrode diameter
• DC TIG/ARC output current and high duty cycles
• Designed with the latest IGBT inverter technology platform
• Multi-functional; HF TIG, Lift ARC & TIG, and MMA/ARC processes
• Lightweight and compact design for easy portability in all applications
• Low current output which is ideal for welding thinner materials
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05775
Input Supply: 230v (16A)
Output Current: 10A - 160A (TIG) / 10A - 140A (ARC)
Output Voltage: 10.4v - 16.4v (TIG) / 20.4v - 25.6v (ARC)
Duty Cycle: 160A @ 60% (TIG) / 140A @ 60% (ARC)
Electrode Diameter: Ø 1.6mm - 3.2mm
Protection Level: IP21S
Insulation Class: Class H
