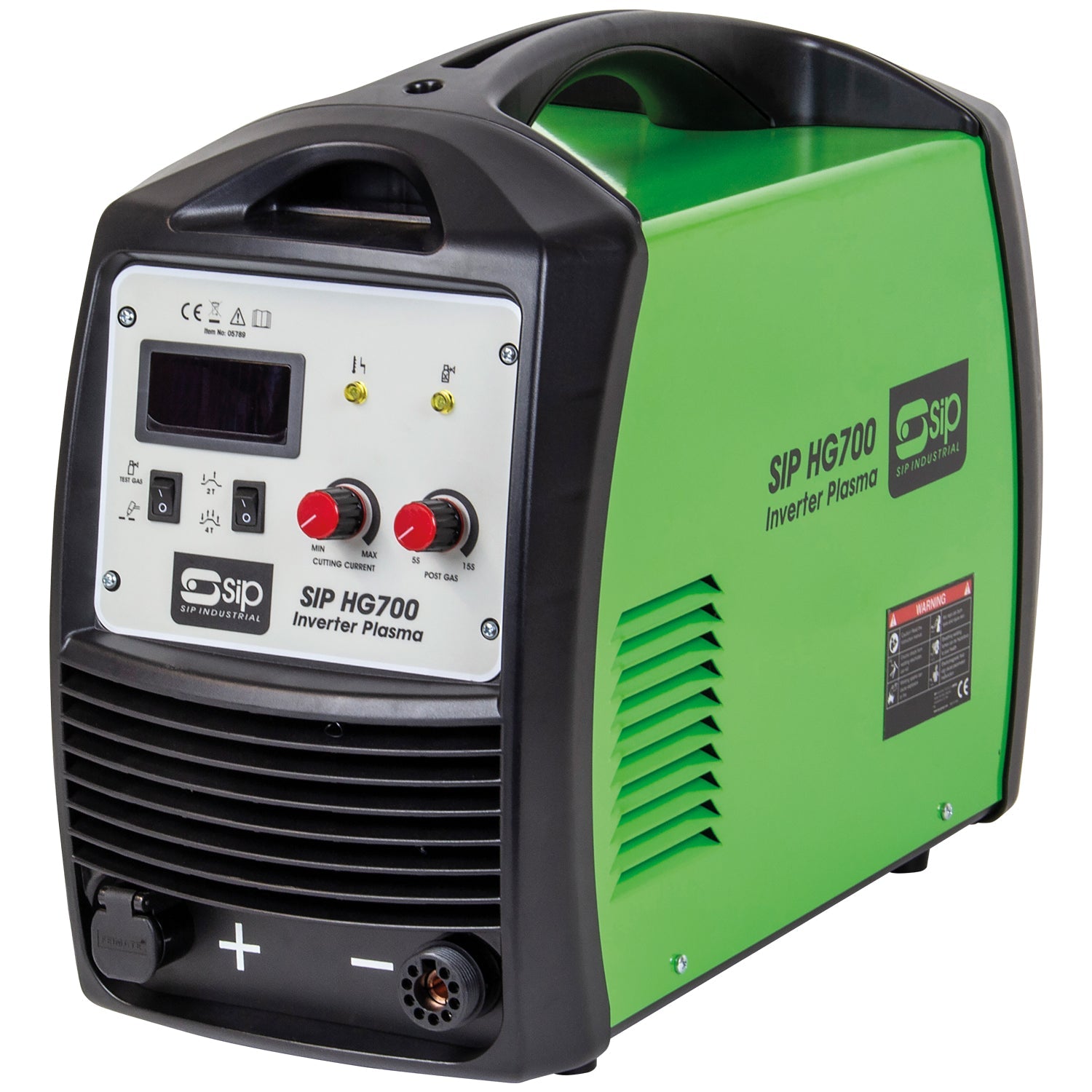

SIP HG700 Inverter Plasma Cutter

The SIP HG700 Inverter Plasma Cutter provides consistently high-quality and accurate cutting of a range of varied conductive materials, in tandem with infinitely variable power output, including mild steel, stainless steel, copper, bronze and aluminium.

• 25A to 70A output current; 70A @ 60% duty cycle
• High duty cycle for longer cutting times than others
• 20mm quality cut and 25mm severance cutting capacity
• Parts-in-place safety circuit for added peace-of-mind
• Infinitely variable power output for high versatility
• Compact one-person lift design for easy, safe portability
• Built with an integrated air pressure sensor switch
• Perfect for sheet metal and automotive applications
• SIP 2-Year Standard Silver Warranty - ITEM NO. 05789
Input Supply: 400v (16A)
Output Current: 25A - 70A
Output Voltage: 90v - 108v
Max. Air Pressure: 43psi (3bar) - 87psi (6bar)
Working Air Flow: 300ltr/min
Duty Cycle: 70A @ 60%
Max. Cutting Capacity: 20mm
Max. Severing Capacity: 25mm
Protection Level: IP21S
Insulation Class: Class F
