SIP ISBD15/500 500ltr Industrial Electric Compressor
SIP ISBD15/500 500ltr Industrial Electric Compressor
Prices may vary between branches.
Couldn't load pickup availability
The SIP ISBD15/500 500ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a large range of demanding industrial applications.
Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.
Each ISBD15/500 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.
• Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
• Heavy-duty smooth V-Twin pump for optimum efficiency and performance
• Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
• Long-stroke cast iron cylinders for slower running and increased pump life
• Robust valve plate with individual valves for efficient performance
• Supplied with heavy-duty anti-vibration mounts
• Star Delta starter reduces current during motor starting
• SIP 10-Year Anti-Corrosion Receiver Warranty
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy - ITEM NO. 06297
Input Supply: 400v (32A) 3-PHASE
Motor Power: 15hp (11.2kW)
Receiver Size: 500ltr
Piston Displacement: 61.50CFM (1744ltr/min)
Free Air Delivery (FAD): 40.70CFM (1153ltr/min)
Max. Air Pressure: 160psi (11bar)
Working Speed: 1200rpm
No. of Cylinders: 4 cylinders
No. of Stages: 2 stages

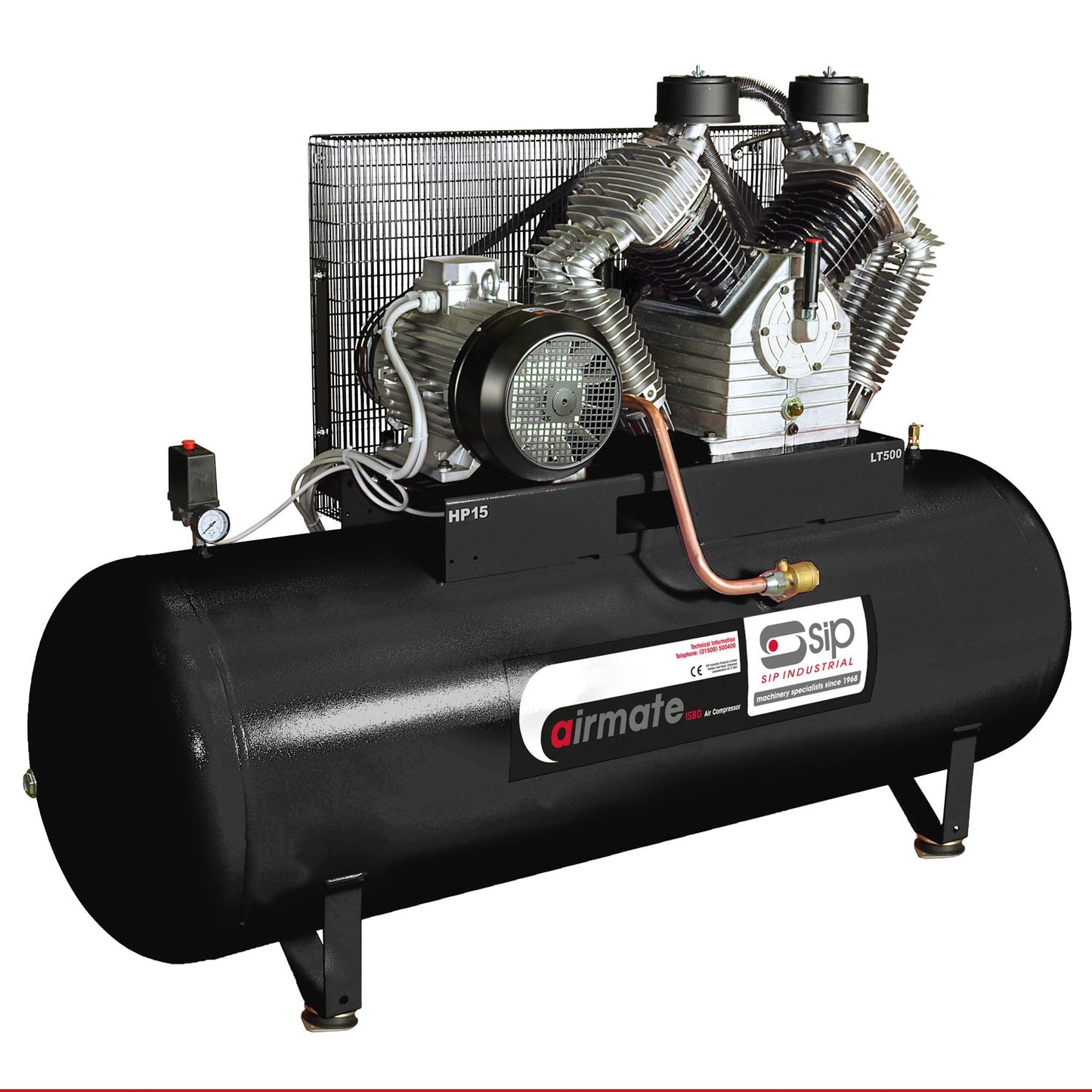

![SIP ISBD15/500 500ltr Industrial Electric Compressor, Sip Industrial](http://www.morgansltd.com/cdn/shop/products/06297.main_86548f7c-3440-46df-8ae3-d2809edb974a.jpg?v=1701702851&width=1445)
