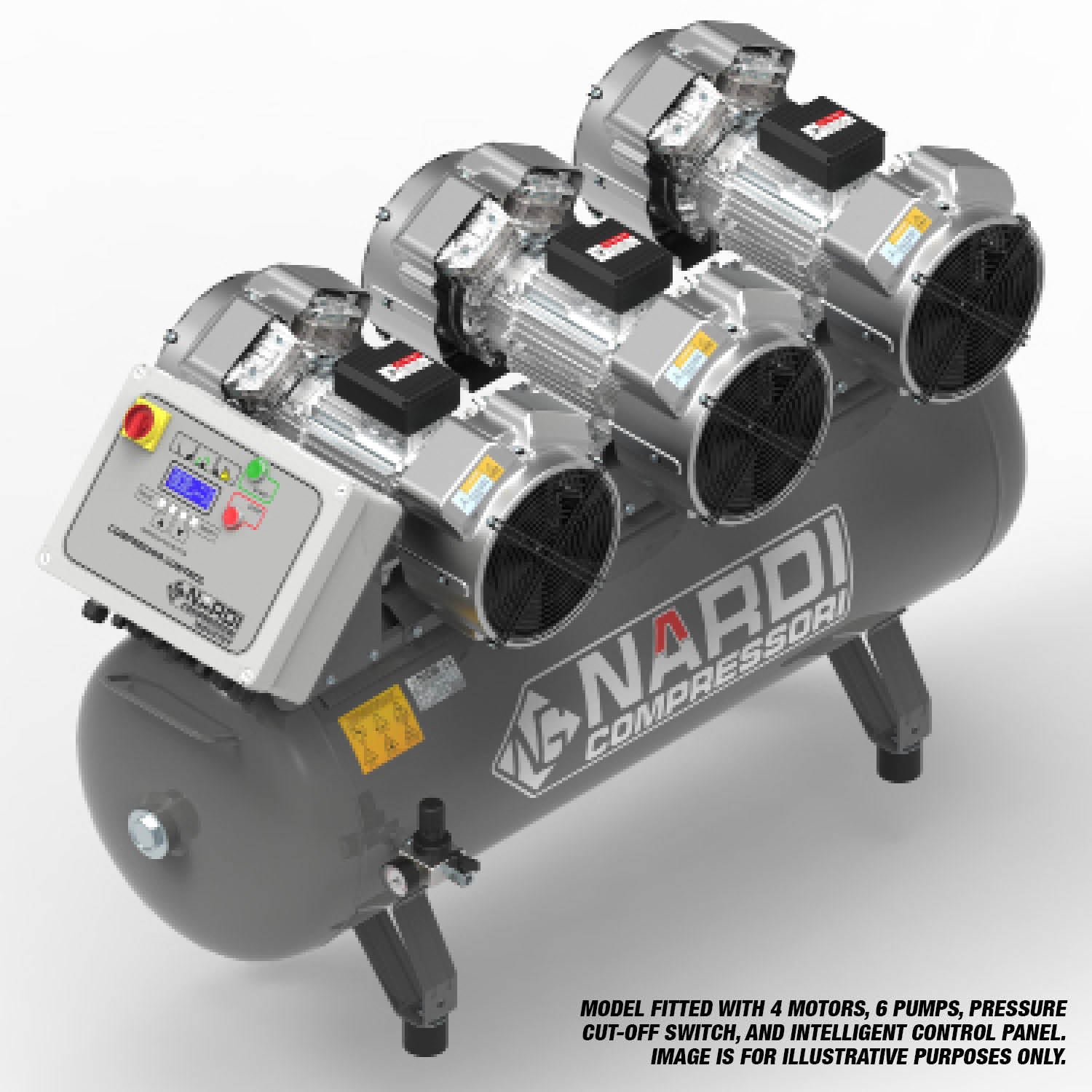

NARDI EXTREME MP 9HP 270ltr Compressor with Panel

The NARDI EXTREME MP 9HP 270ltr Compressor with Panel is designed for high volume and low pressure applications, delivering powerful air via slow-running motor and oil-free pump, plus an intelligent control for motor control and system monitoring.

The integrated control panel provides bespoke multi-pump support, delivering even power distribution on up to 3 motor/pump configurations, operating them continually dependant on air requirements and optimising usage.

Elsewhere, the panel features a service internal indicator for maintaining optimum performance and reliability and individual meters and timers to measure pump hours via a microprocessor-controller pump selection.

Ideal for a variety of industrial-grade applications.

• Triple 3-phase slow-running 4-pole motors for high performance
• Intelligent control panel; motor control and system monitoring
• V-Twin cylinder; direct drive crankshaft via motor shaft
• High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
• Concentric big end bearings for reduced vibration and increased pump life
• Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
• Fan-shaped stainless steel valves provide long life and durability
• Forced air cooling for an extended runtime and performance
• Low noise; perfect for noise critical situations
• Built with an adjustable air pressure regulator
• SIP 3-Year Standard Silver Warranty
• Manufactured in Italy - ITEM NO. EXTMP27090CP
Input Supply: 400v 3-PHASE
Motor Power: 3x 2.20kW (3.00hp) 4-POLE 1400rpm
Receiver Size: 270ltr
Piston Displacement: 63.60CFM (1800ltr/min)
Free Air Delivery (FAD): 44.50CFM (1272ltr/min)
Max. Air Pressure: 145psi (10bar)
No. of Cylinders: 12 cylinders
Noise Level: 75dB(A)
