46/390 x 1/2 TCT Bearing Guided Rebater 22.5mm x 50.8mm

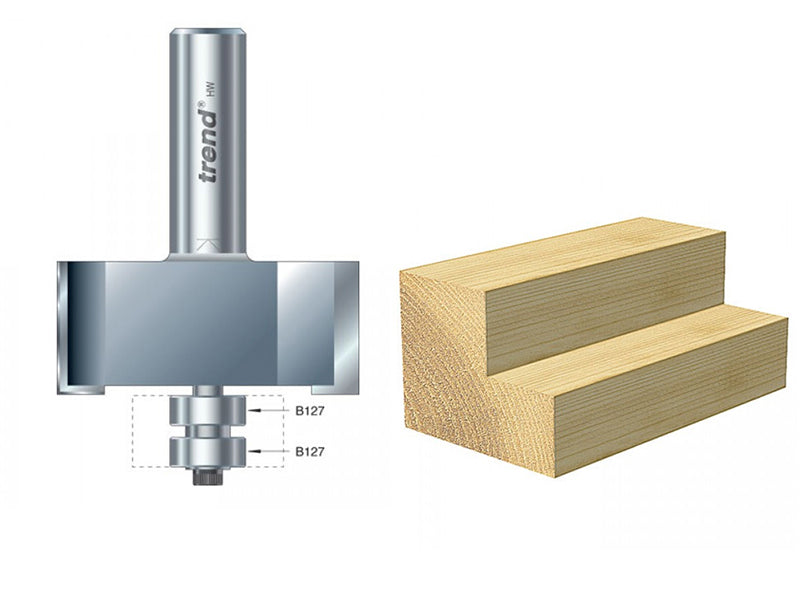

This Trend 46/390x1/2TC Large Guided Rebater is bearing guided for straight curved work. It is for use with portable or stationary routers and is supplied as standard with ref: BR/191 fitted.

There are a variety of allow bearing rings available to give various rebate sizes. Rings are secured between the two bearings.

D: 50.8 mm
C: 22.5 mm
B: 12.7 mm
E: 19.1 mm
E: 15.9 mm
OL: 78 mm

Shank Diameter: 1/2 inch
Shank length: 35 mm
