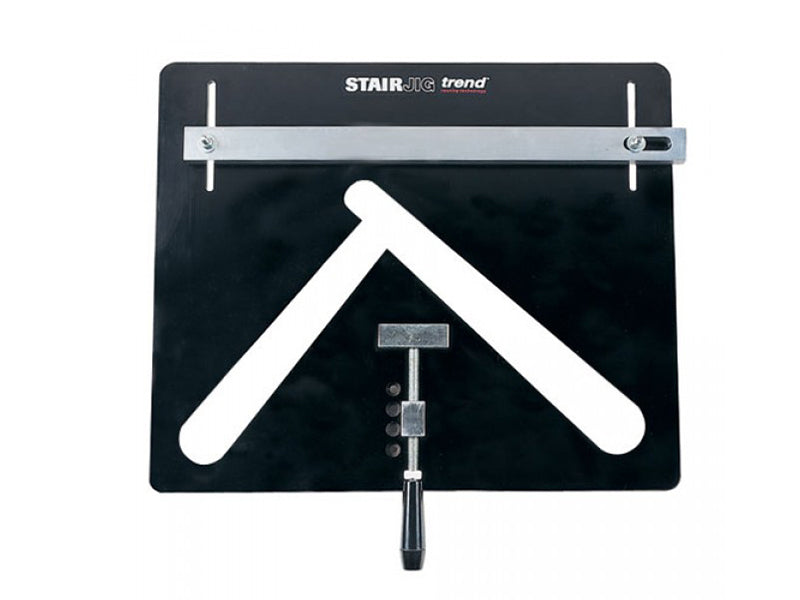

STAIR/A Staircase Jig

This Trend STAIR/A is a template jig with well proven means of routing out stair housings quickly and accurately. It is constructed from hard wearing Compact Grade High Pressure Laminate and includes a reversible fence for exact matching of stair strings and fully adjustable nosing piece. It has a built-in heavy duty front clamp for quick clamping for each trench.

It is adjustable to suit private and common stair angle pitches and can be used with all heavy-duty routers over 1600 watts. The Sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2-inch routers, for other makes the sub-base will have to be redrilled.


Tread Thickness: 22-32 mm
Slider Diameter: 30 mm
Nosing Adjustment: 16-19 mm
Length: 585 mm
Height: 485 mm
Width: 12.5 mm
Weight: 6.17kg

Kit includes:-
1 x Adjustable reversible clamp.
1 x Reversible clamp bar.
1 x Sub-base.
1 x Nose piece.
1 x Line up pin and bush.
2 x Spanners.
